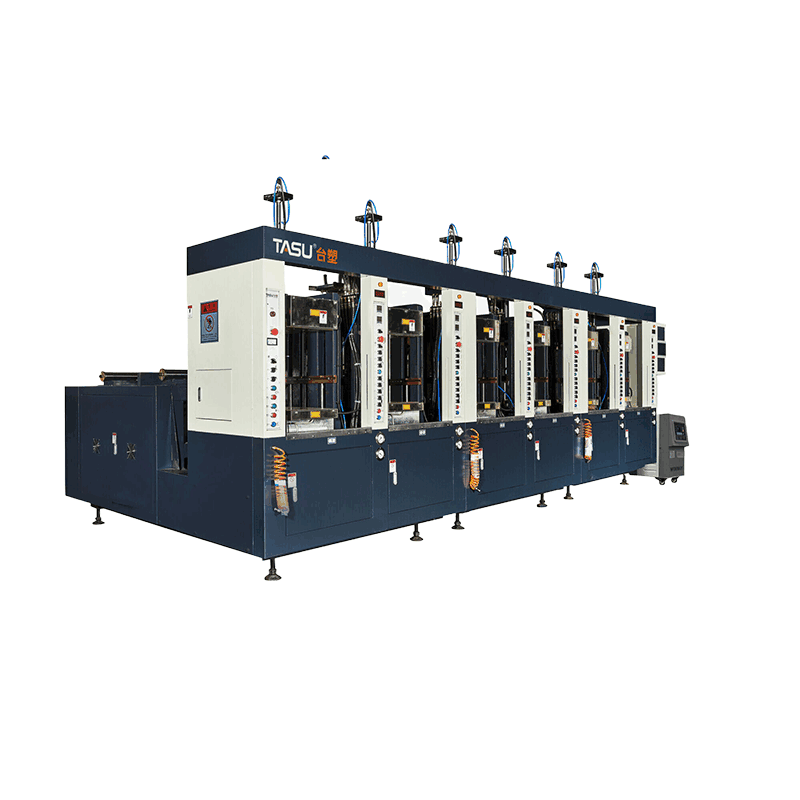

rubber compression molding machine

Nome	rubber compression molding machine
Marchio	Tasu
Colore	bicolore
Numero di stazioni	6
Materiale di lavorazione	gomma
Applicazioni	Golf balls，Boots，Shoes，Car mats，Automotive parts

Upgrade your production line with our 6-station Rubber Compression Molding Machine, engineered for high efficiency, precision molding, and robust industrial performance. Designed for a wide range of rubber applications—from automotive seals and O-rings to industrial gaskets and custom-molded parts—this machine combines power and control for optimized productivity.

Technical Specifications:

Modello	Unit	Parameters
Number of Work Stations	Stazioni	6
Productivity per Hour	Coppie	90–180 (mold/hour)
Diametro della vite	mm	∮65
Max. Injection Volume	cm³	1080
Max. Injection Pressure	Kgf/cm²	2200
Mould Clamping Force	Tonnellate	180
Mould Space (L×W×H)	mm	450 × 380 × 220
Potenza del motore	kW	18.5 + 15 × 2
Heating Power (Mold Controller)	kW	36 + 9
Machine Weight (Approximate)	Tonnellate	13

Caratteristiche principali:

Multi-Station Efficiency: 6 workstations support semi- or fully automated cycling to boost throughput.
High Precision Injection System: ∮65 mm screw diameter and 1080 cm³ injection volume ensure accurate rubber dosing and consistent part quality.
Robust Clamping System: 180-ton clamping force provides reliable mold locking even for complex, high-pressure parts.
Heavy-Duty Build: 13-ton frame structure ensures long service life and vibration-free operation.
Advanced Heating Control: Equipped with a 36KW + 9KW mold temperature controller for stable thermal management.
Energy-Efficient Motors: Dual 15 kW motors plus an 18.5 kW main motor provide balanced power while reducing energy loss.
