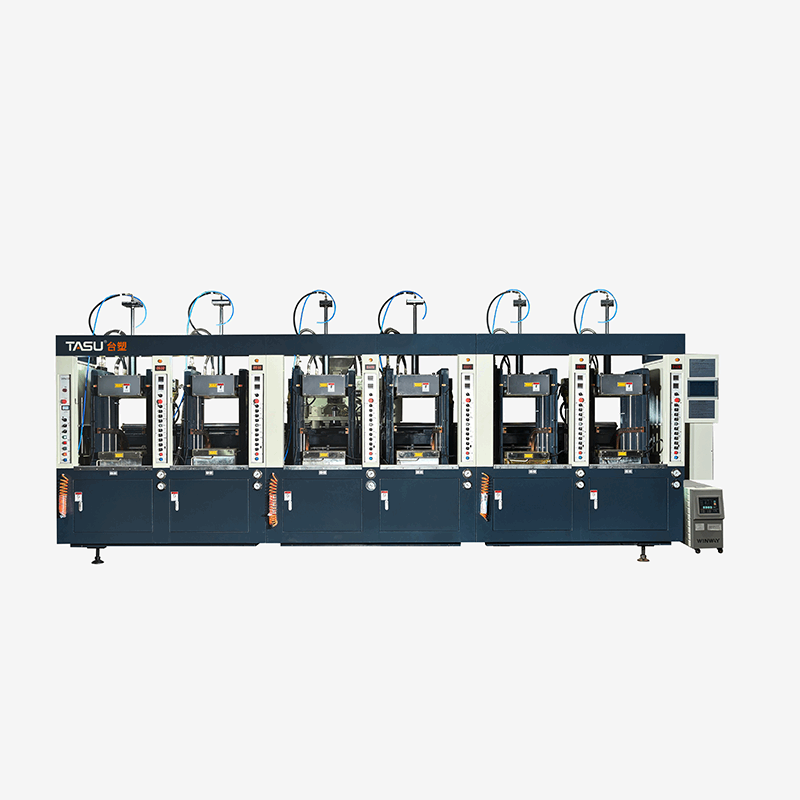

The TPR Sole Making Machine is designed for high-speed, precise production of TPR (Thermoplastic Rubber) soles. It provides versatile molding capabilities for various sole types and sizes, making it an ideal choice for footwear manufacturers aiming to streamline production.
Key Features:
-
High Injection Pressure: Max injection pressure of 3000 Kgf/cm² for efficient molding of TPU materials.
-
Powerful Motor: Dual 18.5 kW motors for enhanced performance and speed.
-
Optimized Molding Capacity: Mould clamping force of 200 tons and mold space of 500×490×220 mm for large-volume production.
-
Flexible Operation: Capable of handling different materials with an easy-to-use interface and reliable automation.
-
Compact Design: Small footprint with a hot plate size of 470×450 mm (for RB) and pad dimensions of 380×450×150 mm (for TPU).
-
Energy Efficient: 50KW testing bands and a 9KW mold temperature controller for precise temperature management.
-
Robust Construction: Weighing approximately 22 tons, this machine is built for durability and long-term use.
Applications:
-
Ideal for manufacturing various types of TPR soles for shoes, sandals, and slippers.
-
Suitable for mass production with high output rates and minimal downtime.
Machine Accessories and Brands
| Accessory | Brand | Quantity | Description |
|---|---|---|---|
| Clamping Cylinder | 280 Composite Cylinder | 6 | Self-supporting with high precision |
| Screw (Ø85/Ø65) | Inlaid Bi-alloy | 1 | Durable and designed for high precision |
| Max Injection Volume | N/A | 2340/1370 g | Strong overload capacity for large-scale production |
| Motor | MODROL | 2 | High output for stable ejection volume |
| Driver | MODROL | 2 | Easy to debug with excellent stability |
| Vacuum Pump | DALOUTON | 1 | High exhaust volume for efficient operation |
| Oil Pump | HYTEK | 2 | High-pressure, reliable oil pumping system |
| Solenoid Valve | HYTEK | 1 | Superior quality with high precision |
| Touch Screen | WECON (LEVI-10.2) | 1 | 10-inch user-friendly interface |
| Computer | FATEK-FBS-60MAT | 1 | Reliable Taiwan brand (Yonghong) |
| Push Button | Schneider | 1 | Long-lasting and dependable quality |
| AC Contactor | Schneider | 1 | Trusted brand known for durability |
| Solid State Relay | TAIWAN FOTEK | 1 | High performance and reliable |
| Proximity Switches | TAIWAN FOTEK | 1 | Durable, high-precision components |
